Plug Valve

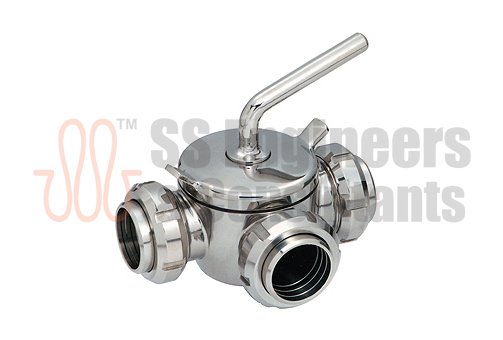

Plug valves are valves with cylindrical or conically-tapered "plugs" which can be rotated inside the valve body to control flow through the valve. Plug valves are simple and often economical. When the plug is conically-tapered, the stem/handle is typically attached to the larger diameter end of the plug. The stem and handle often come in one piece, often a simple, approximately L-shaped handle attached to the end of the plug. The other end of the plug is often exposed to the outside of the valve too, but with a mechanism which retains the plug in the body.

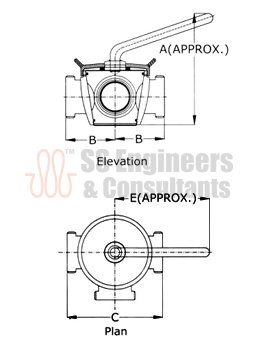

Technical data
D |
D |
A |
C |
C |
Valve |
Inches |
MM |
MM |
MM |
MM |
MM |
1" |
25.4 |
140 |
55 |
110 |
90 |
1½" |
38.1 |
180 |
70 |
140 |
130 |
2" |
50.8 |
185 |
82 |
164 |
164 |
2½" |
63.5 |
240 |
105 |
210 |
160 |
3" |
76.2 |
260 |
110 |
220 |
190 |
4" |
101.6 |
315 |
142 |
284 |
170 |
